HDPE 100s

HDPE is a highly crystalline non-polar thermoplastic resin produced through the copolymerization of ethylene and a small amount of a-olefin monomer.

Category:

Plastic Raw Materials

Keyword:

HDPE 100s

Inquire Now

Still deciding? Get samples first, Contact US !

Description

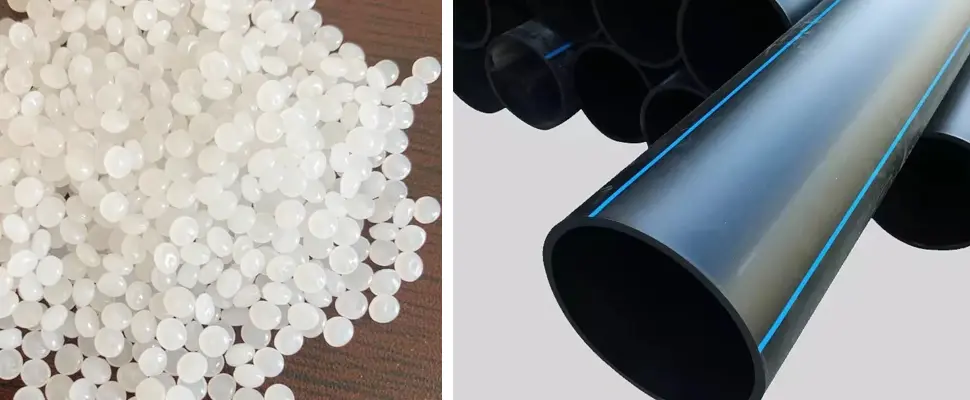

HDPE is a highly crystalline non-polar thermoplastic resin produced through the copolymerization of ethylene and a small amount of a-olefin monomer. HDPE is synthesized under low pressure and is therefore also called low-pressure polyethylene. HDPE is mainly a linear molecular structure and has little branching. lt has a high degree of crystalization and high density. lt can withstand high temperatures and has good rigidity and mechanical strength and anti-chemical corrosion.

Sinopec produces a full grade of HDPE, which cover all fields of HDPE applications, including film, blow-molding, extrusion molding, injection molding, pipes, wire & cable and base material for producing chlorinated polyethylene.

Specification

Grades	HDPE PN049	HDPE-100	HDPE-80	HDPE-6081H	HDPE-3000JE
(5.0kg,190℃)Melt mass-flow rate,g/10min	0.26	0.26	0.430	6.22	2.2
Density,g/cm³	0.95	0.95	0.9458	0.9577	0.956
Tensile stress at yield,Mpa	23.3	23.3	21.3	26.1	24.8
Modulus of elasticity in tension,Mpa	882	882	-	-	-
Flexural modulus,Mpa	1047	1047	955	1057	1020
23℃ Charpy impact strength,KJ/m²	37.8	37.8	11.8H	4.2	12
Temperature of deflection under load(Tf0.45),℃	77	77	-	-	68
Water content,mg/kg	14	14	58	-	-
Volatile content,mg/kg	213	213	112	-	-
0xidation induction time(0IT,210℃),min	78.3	78.3	28.9	-	-
Nominal tensile strain at break,%	560	560	298	661	9.6
Application	drain pipe	drain pipe	Water pipe	Injection bottle cap	Injection bottle cap
